Gol Pumps Close Coupled In-Line Centrifugal Pump, 9300GPH, 0.75HP, 230/460V, 1710RPM, Model EGM40-3213-00554
5/5
Gol Pumps Close Coupled In-Line Centrifugal Pump, 9300GPH, 0.75HP, 230/460V, 1710RPM, Model EGM40-3213-00554
FREE SHIPPING
------
$1,527.68 – $1,728.20
Free Delivery
Estimated 3-5 business days
Note: If This is a heavy item (over 130 lbs) Forklift or Dock Door is required at delivery location. Otherwise Please Request Liftgate service from here:
EGM series vertical inline pump offer vertical and close coupled design for space saving to meet the needs of users in a variety of cold and hot water circulation, civil and general industrial. They are driven by NEMA standard motor and less space-required for installation.
Application
- Heating, Ventilation and Air-Conditioning
- Fire Protection and Fire Fighting
- Water Circulation
- Liquid Transfer
- Irrigation
- Cooling
- Booster Service
Main Categories
Technical Data

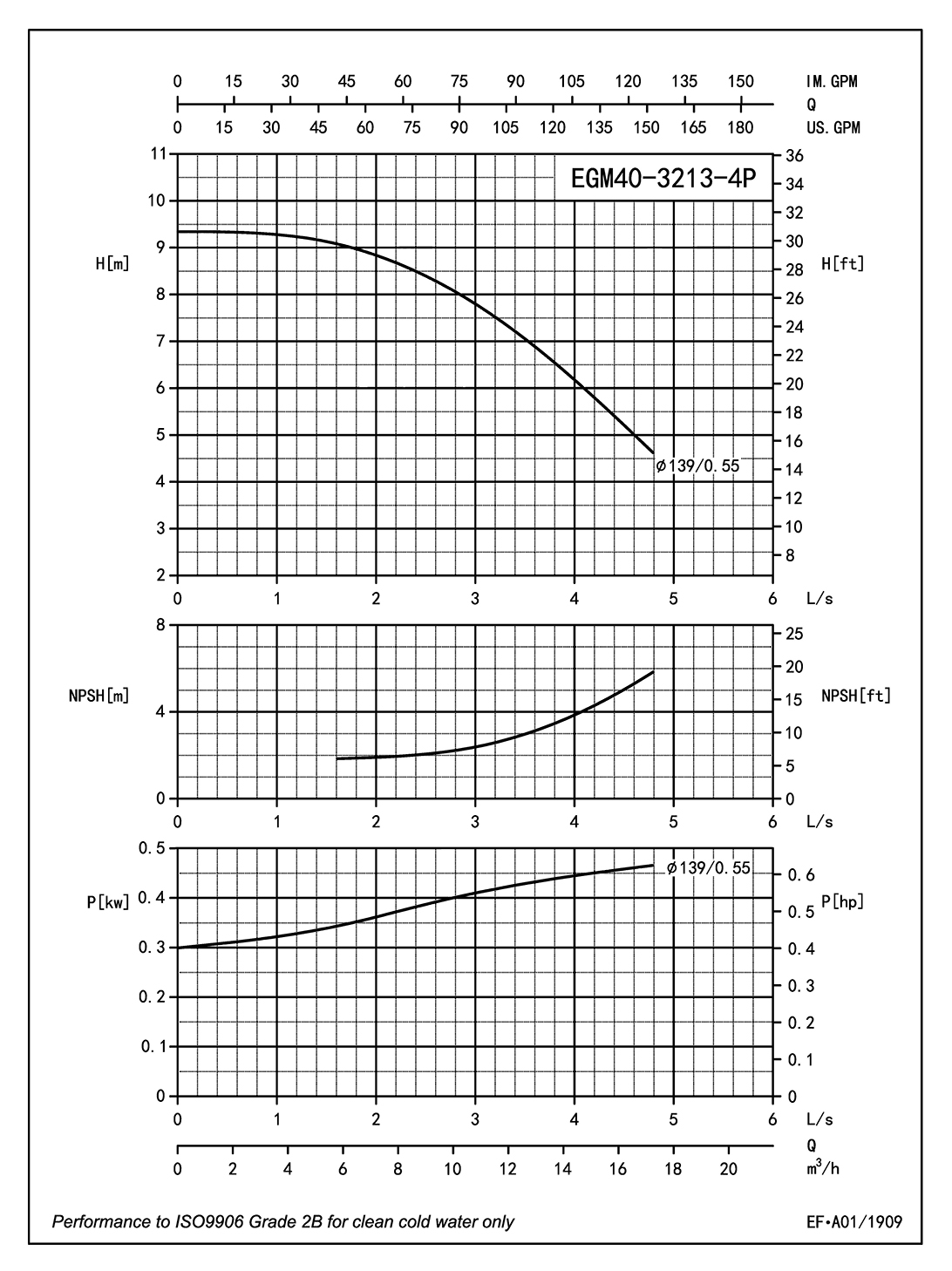

Performance Curve
| Model | Capacity | Head | Speed | Motor | Voltage | Phase | Impeller Diam. | Eff. | (NPSH)r | ||||
| m³/h | l/s | gpm | m | ft | r/min | hp | v | mm | inch | % | ft | ||
| EGM40-3213-00554 | 7.6 | 2.1 | 33.8 | 8.7 | 29 | 1710 | 0.75 | 230/460 | 1/3 | 139 | 5.5 | 50 | 6.6 |
| 13 | 3.6 | 56.3 | 7 | 23 | 56 | 9.8 | |||||||
| 15.5 | 4.3 | 67.5 | 5.5 | 18 | 51.5 | 14.8 | |||||||
Dimensions (inch)
| Flange: ANSI Class 125 | ||||||||||||||||
| h1 | L1 | F | G | L | AD | B1 | B2 | n2 x m2 | n1 x m1 | S1 | DN | D | K | n-Ød | b | Weight (lb) |
| 4.4 | 6 | 5.9 | 12.2 | 16 | 5.7 | 4.1 | 3.7 | 6.7 x 7.9 | 7.9 x 9.1 | 0.5 | 1 1/2 | 5 | 3.9 | 4 – 0.6 | 1 | 105.6 |
Parts List
